Unbalanced “concatenation”¶

Overview¶

The concatenation layers can be a sensitive element in quantized models. When it involves combining multiple tensors that may have significantly different value ranges, leading to potential inaccuracies in quantization.

For example, the quantization of a tensor that contains values ranging in (-1, 1) together with a tensor that ranges in (-64, 64) is less accurate than the quantization of each tensor separately.

Trouble Situation¶

The quantization accuracy may degrade when the value ranges are significantly different in concatenation layers after graph optimization.

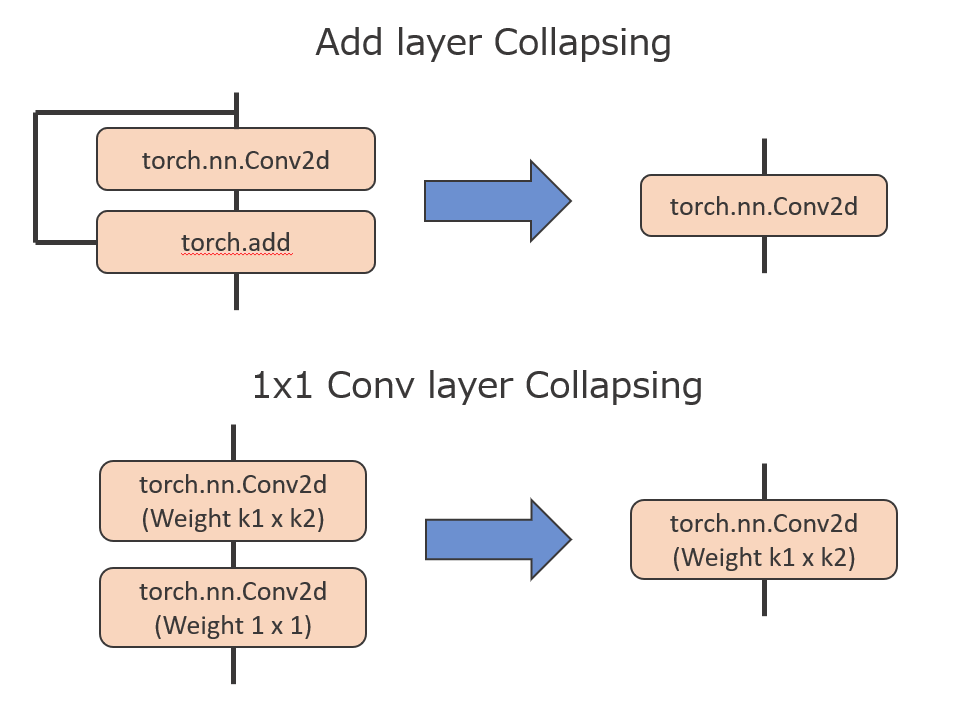

MCT optimizes the graph using layer concatenations, the Add layer Collapsing(collapsing the Add layer to preceding the Convolution) and the 1x1 Conv Layer Collapsing(collapsing the 1x1 Convolution layer to preceding the Convolution).

Solution¶

When you discover the concatenation layers with inputs that have notably different threshold values, consider the following points:

1. Disable some graph optimizations by modifying the QuantizationConfig in CoreConfig.

• If Add layer Collapsing, set linear_collapsing to False.

• If 1x1 Conv Layer Collapsing, set residual_collapsing to False.

core_config = mct.core.CoreConfig(mct.core.QuantizationConfig(linear_collapsing=False,
                                                              residual_collapsing=False))
quantized_model, _ = mct.ptq.pytorch_post_training_quantization(...,
                                                                core_config=core_config)

2. Add a scaling operation between problematic “concatenation” layers in your float model.
